Wharfedale Super 8 - again

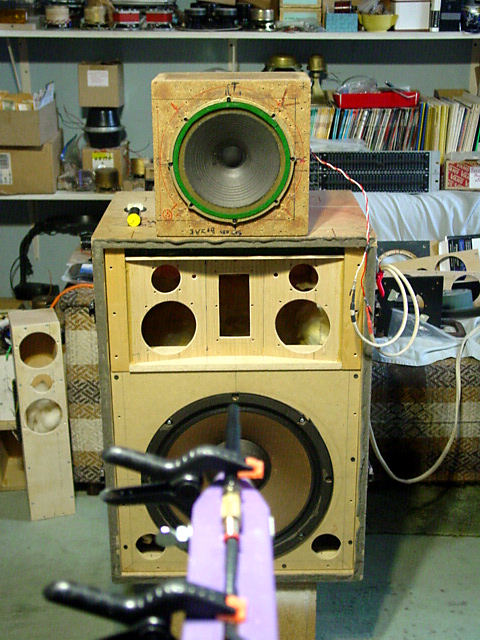

PHOTO 1
The test setup. The Sansui SP3500 look-alike is used to elevate the tweeter.

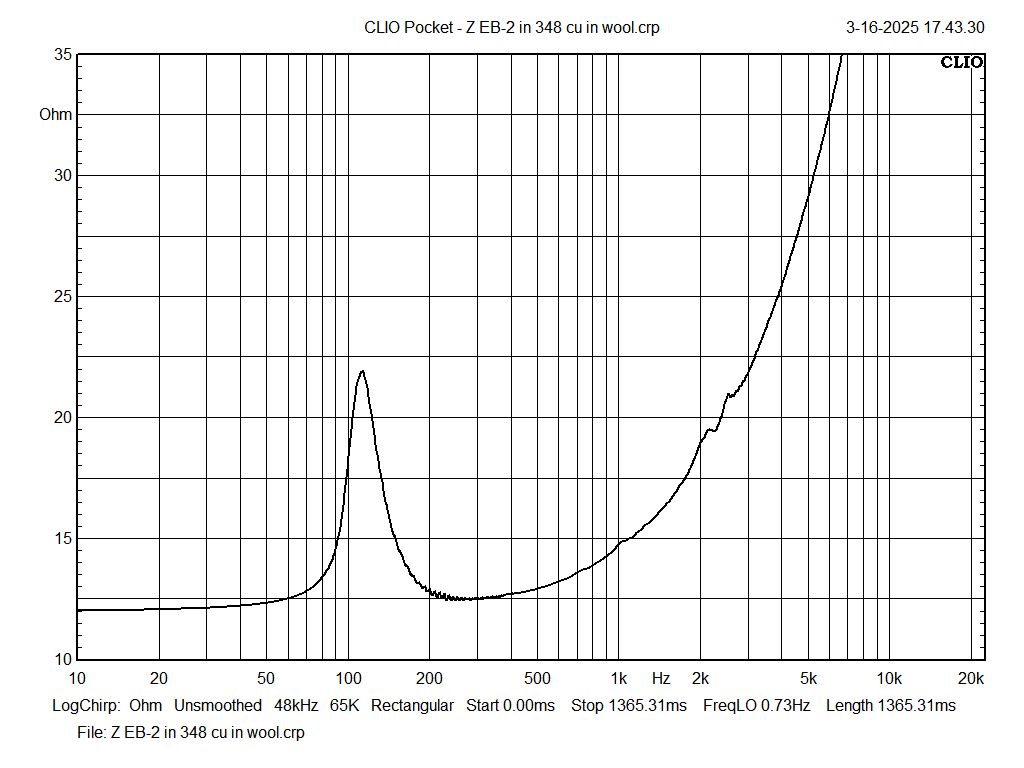

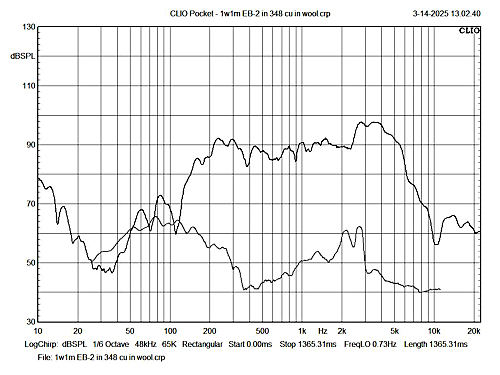

EB-2

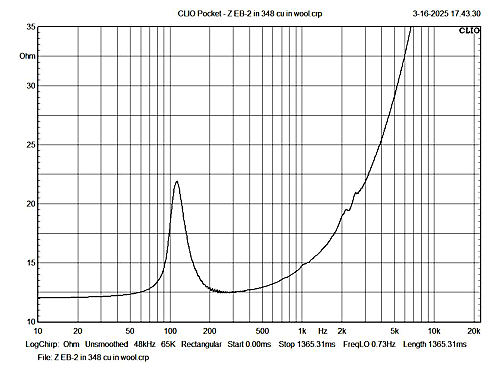

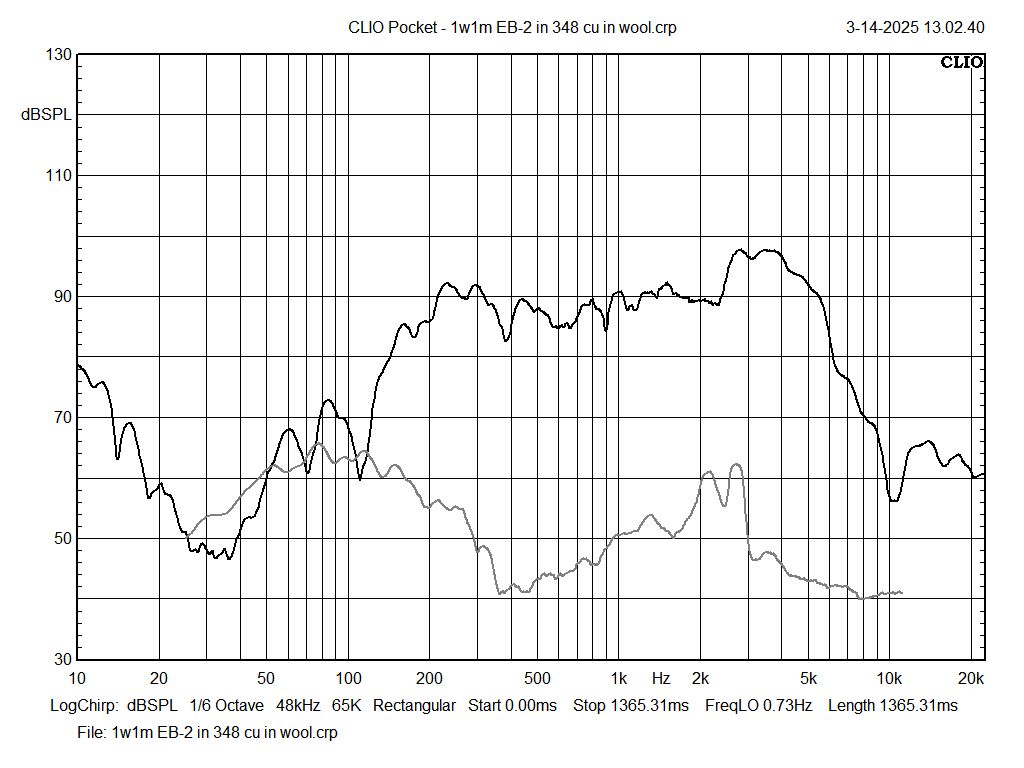

| FIGURE 1
|

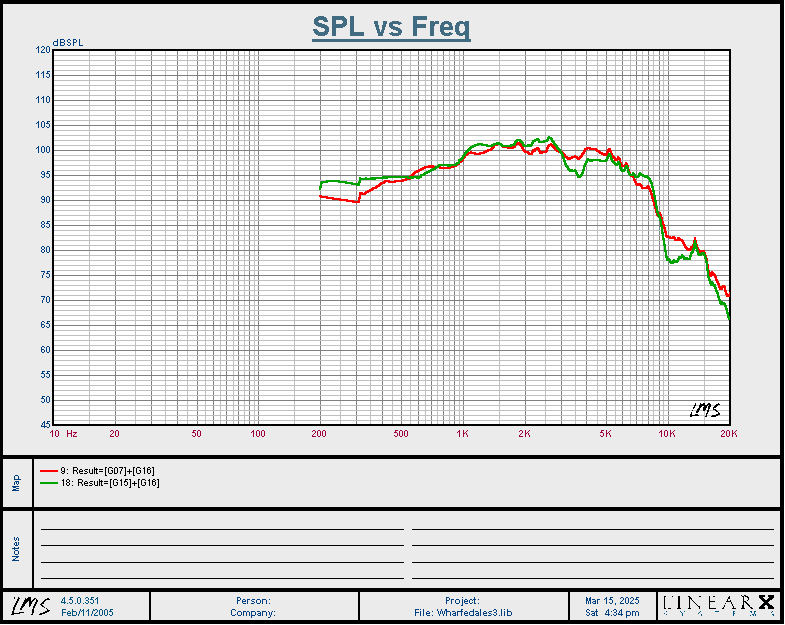

FIGURE 2
|

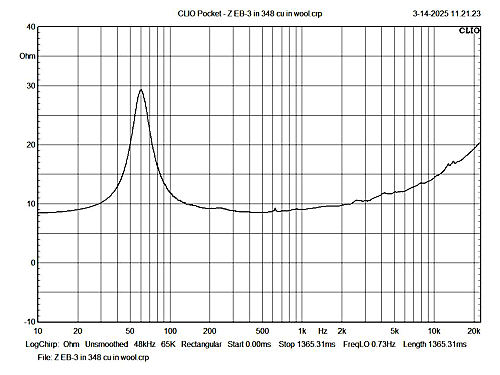

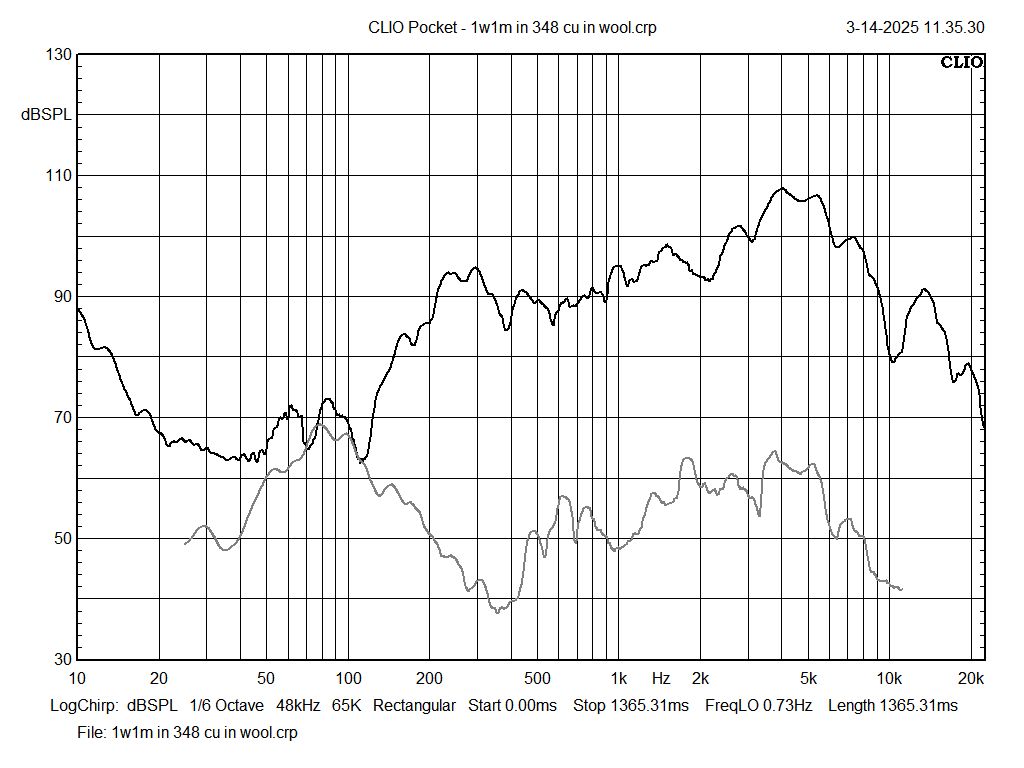

EB-3

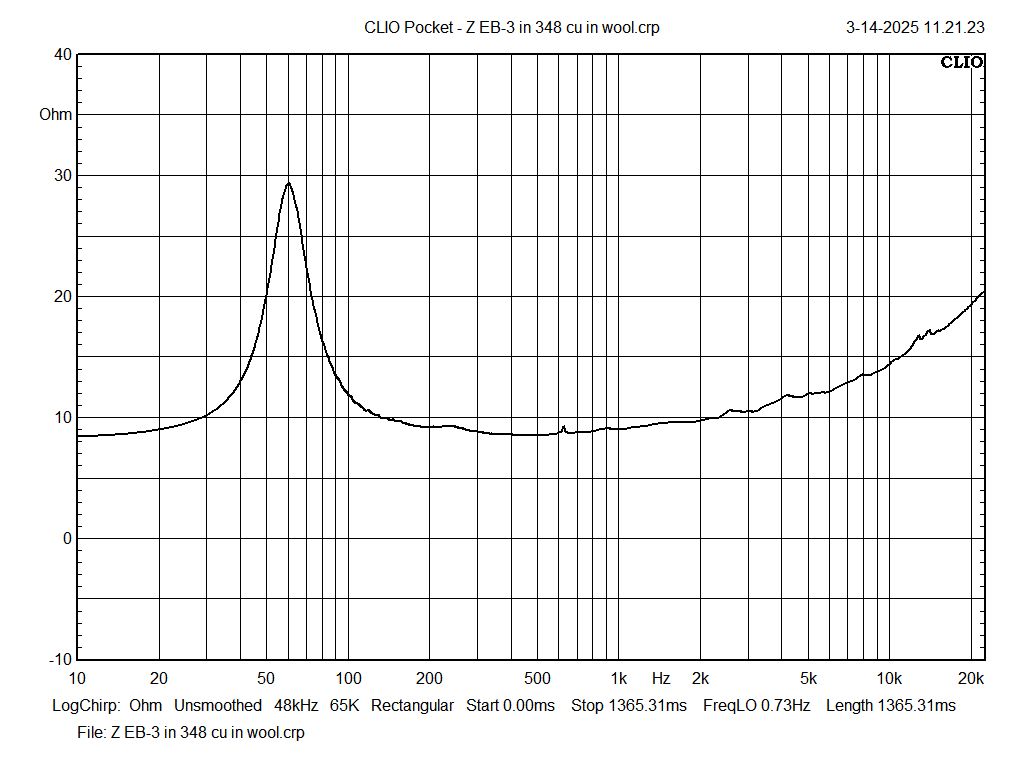

| FIGURE 3
|
FIGURE 4
|

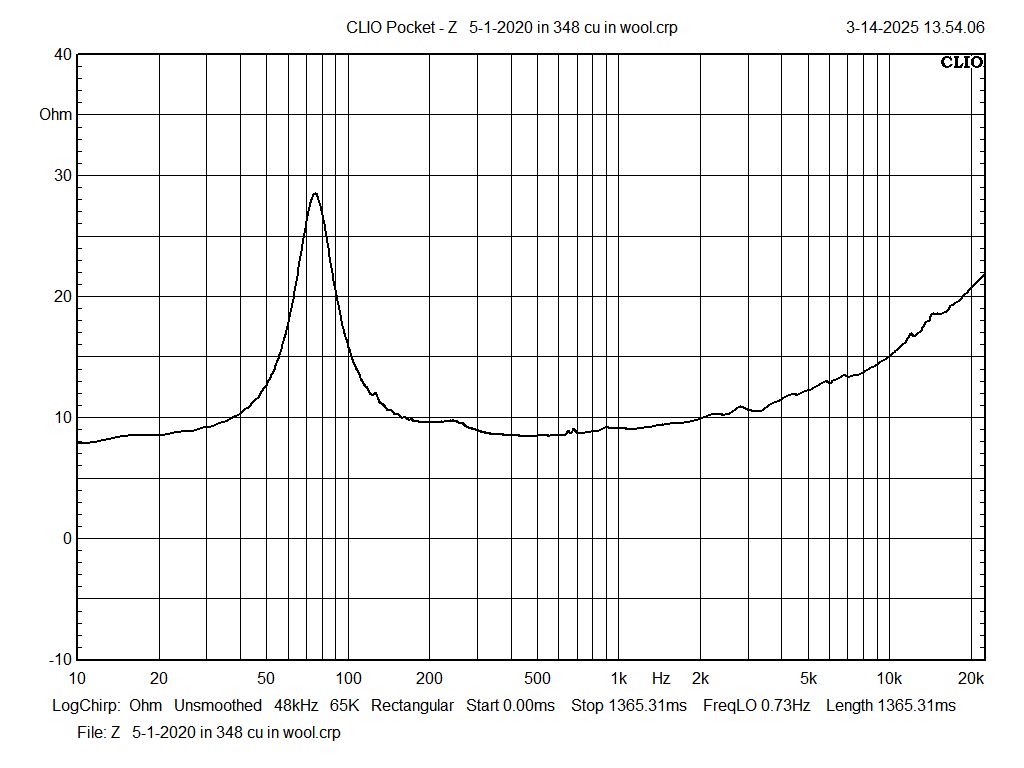

5-1-2020
| FIGURE 5
|
FIGURE 6
|

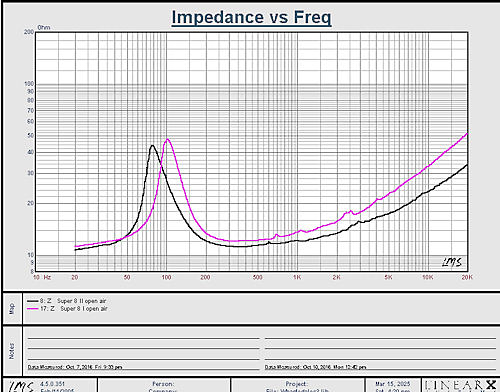

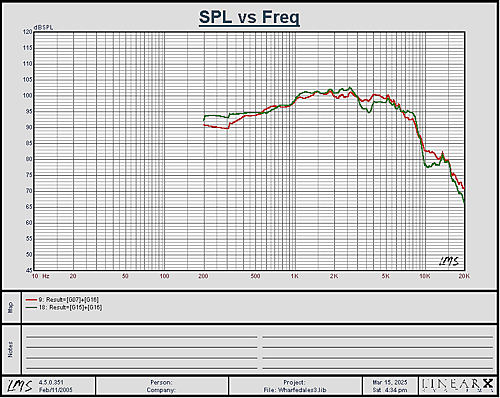

I-II

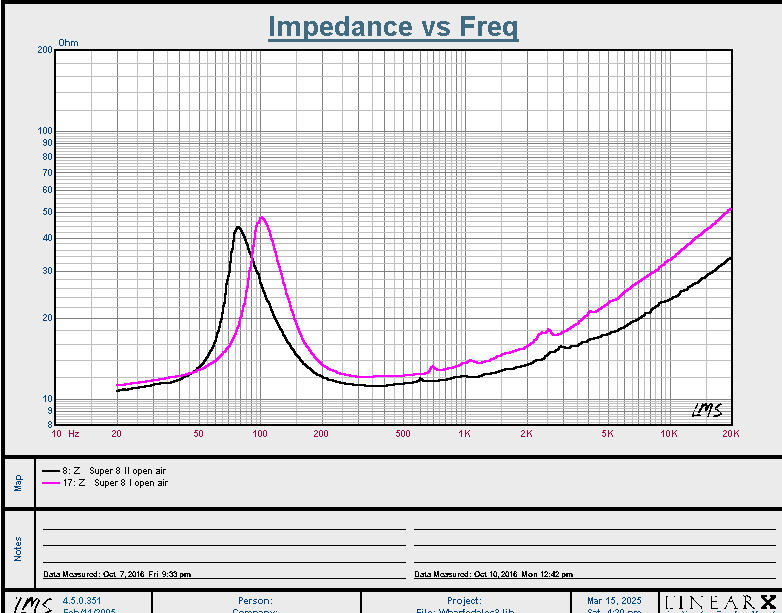

| FIGURE 7
|
FIGURE 8
|
A list of links to the other Super 8 pages
super 8 original cone vs wood cone
Odds 'n Ends

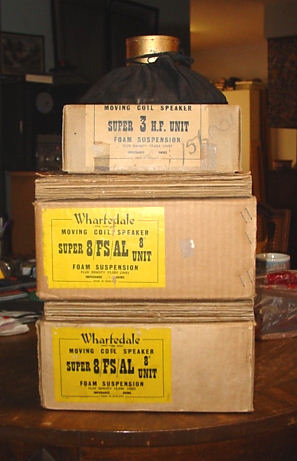

| PHOTO 2
Just some original boxes dating to the late 50's, early 60's The tweeters and midrange units came equipped with a cotton dust bag as the voice coils were open. The tweeter had a foam disc inside the coil and fixed to the top of the pole piece. The larger units had a phenolic spider and was fixed to the frame with screws.
|
| PHOTO 3
|

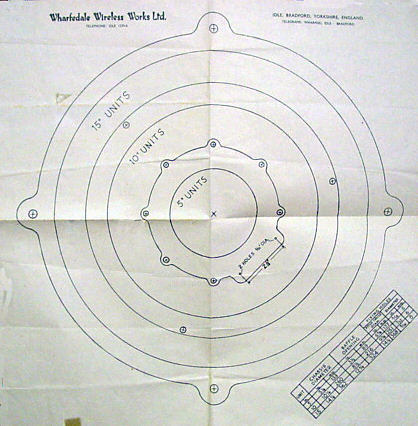

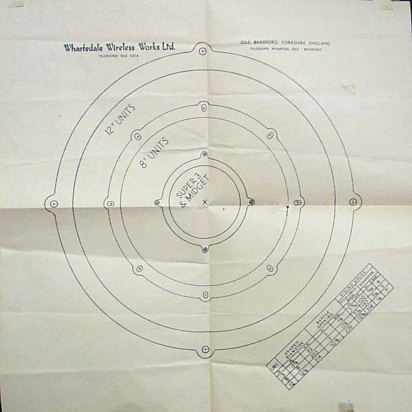

PHOTO 4
|
| These
are templates for cutting the hole and bolt holes. They measure about
18" square and thes images are from each side of the template.
|
|
|
|
